Metal Pressure Clip, Fire-Rated

Need technical support or a quote? We're here to help.
Contact Us Where to Buy
Details

Features

Specifications

Finish nVent CADDY Armour
Material Spring Steel
E30 Fire Rating Power Cable Capacity
Eucasafe (N)HXCH FE 180 E30
Part Number Number of Cores Core Cross Section Cable Diameter Number of Cables
PKM10H6IN 4 1.5 mm² 12.5 mm 8 Max
3 1.5 mm² 11.8 mm 8 Max
2 1.5 mm² 11.4 mm 8 Max
PKM16H6IN 4 1.5 mm² 12.5 mm 12 Max
3 1.5 mm² 11.8 mm 12 Max
2 1.5 mm² 11.4 mm 14 Max
E30 Fire Rating Data Cable Capacity
Eucasafe JE-H(St) Bd FE 180 E30
Part Number Number of Wire Pairs Wire Diameter Cable Diameter Number of Cables
PKM10H6IN 2 0.8 mm 6.6 mm 14 Max
4 0.8 mm 8.8 mm 10 Max
PKM16H6IN 2 0.8 mm 6.6 mm 24 Max
4 0.8 mm 8.8 mm 18 Max

Diagrams

Application images Resources 3D models

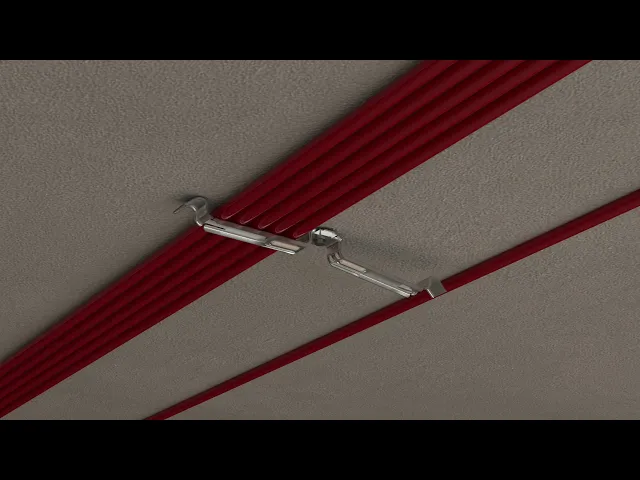

Video
Warning
nVent products shall be installed and used only as indicated in nVent's product instruction sheets and training materials. Instruction sheets are available at www.nvent.com and from your nVent customer service representative. Improper installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause product malfunction, property damage, serious bodily injury and death and/or void your warranty.
